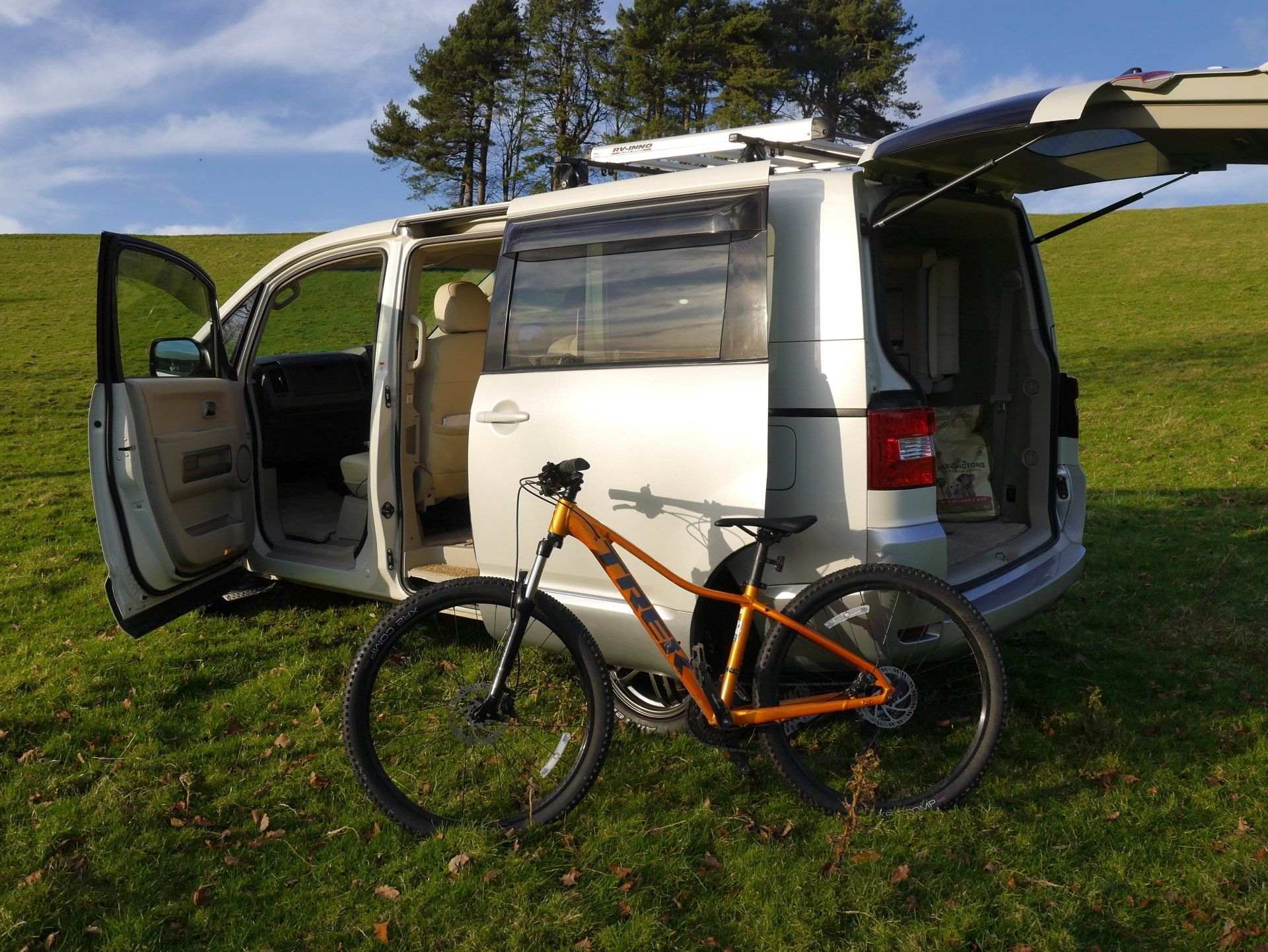

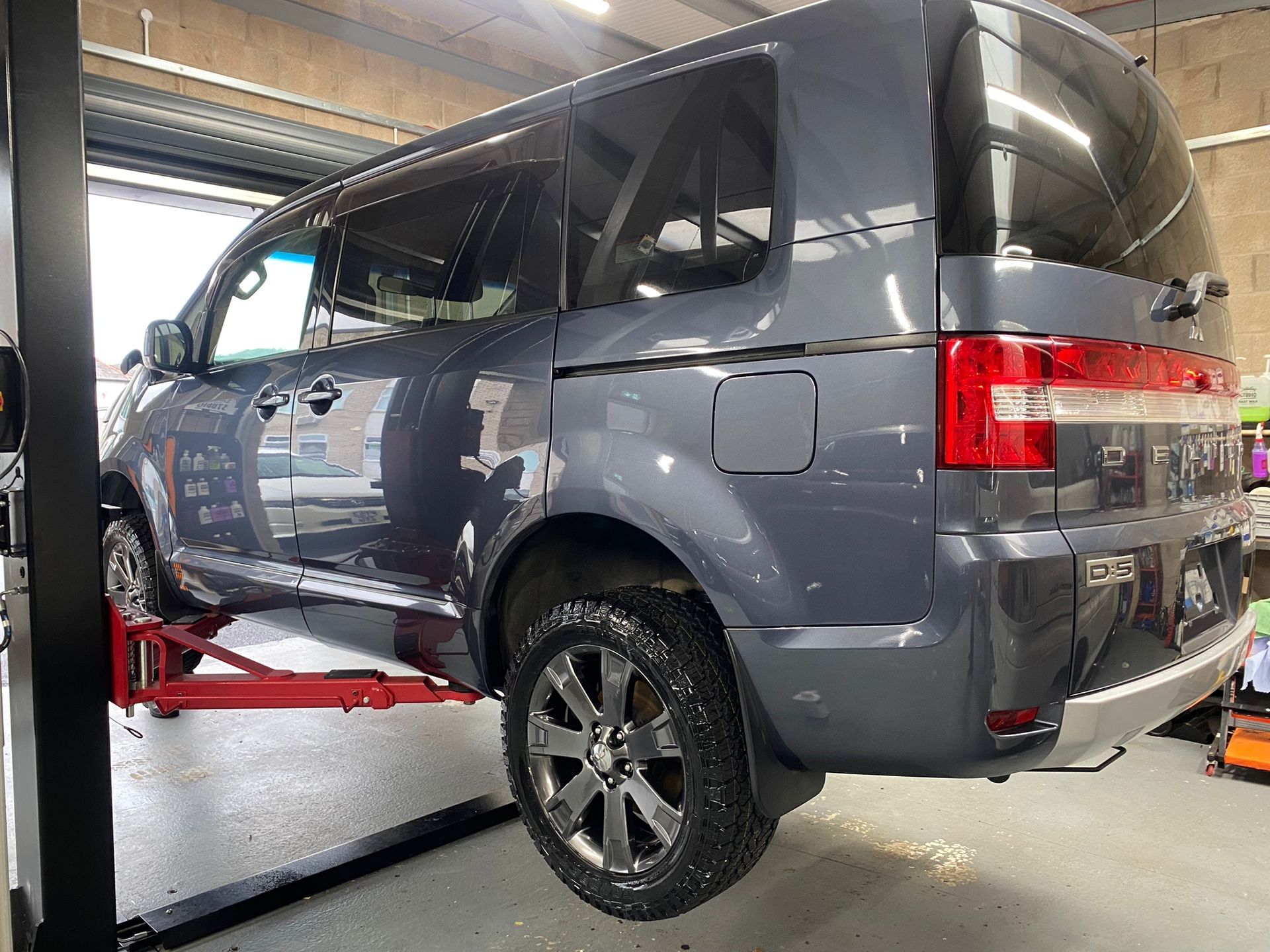

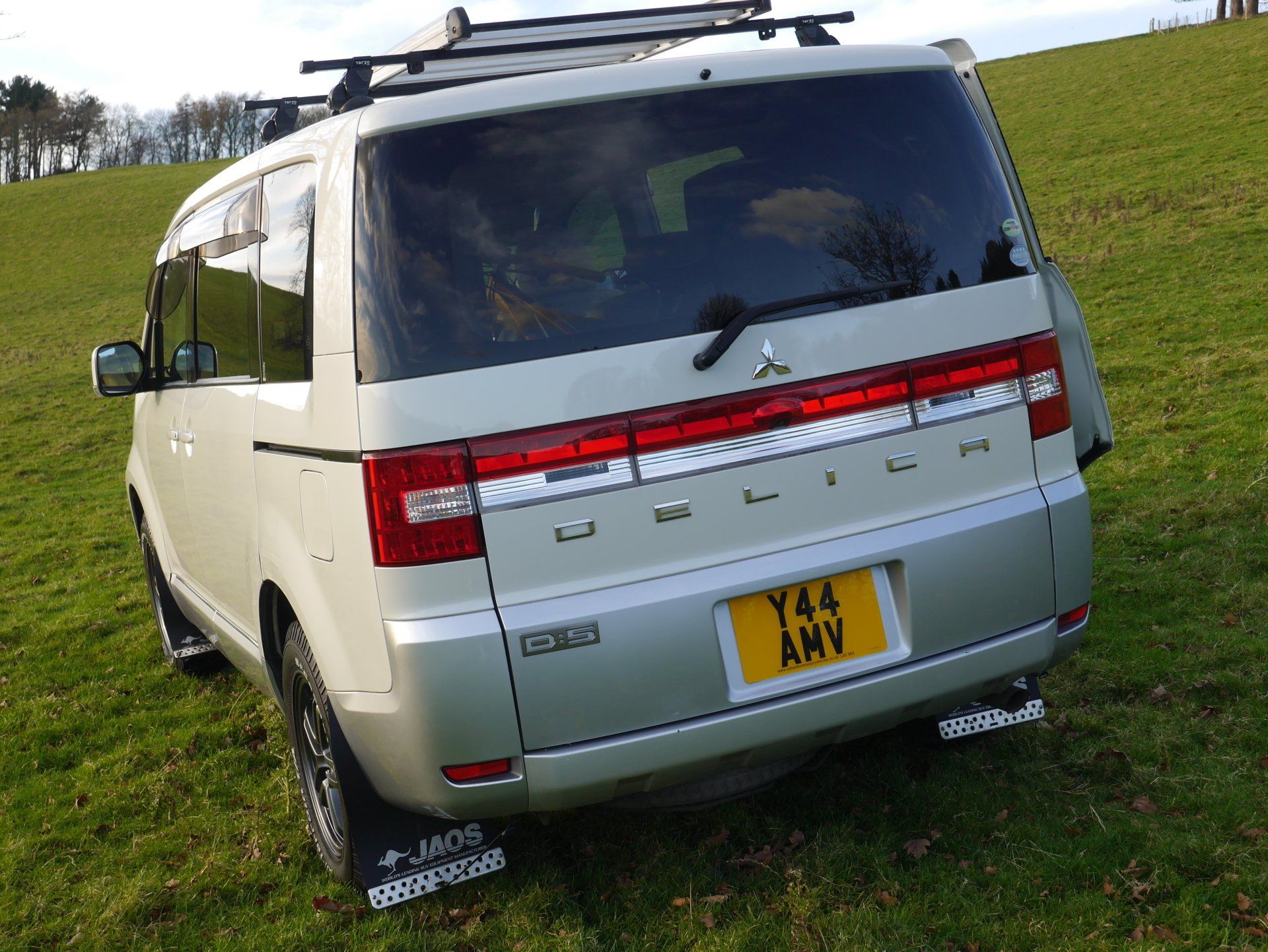

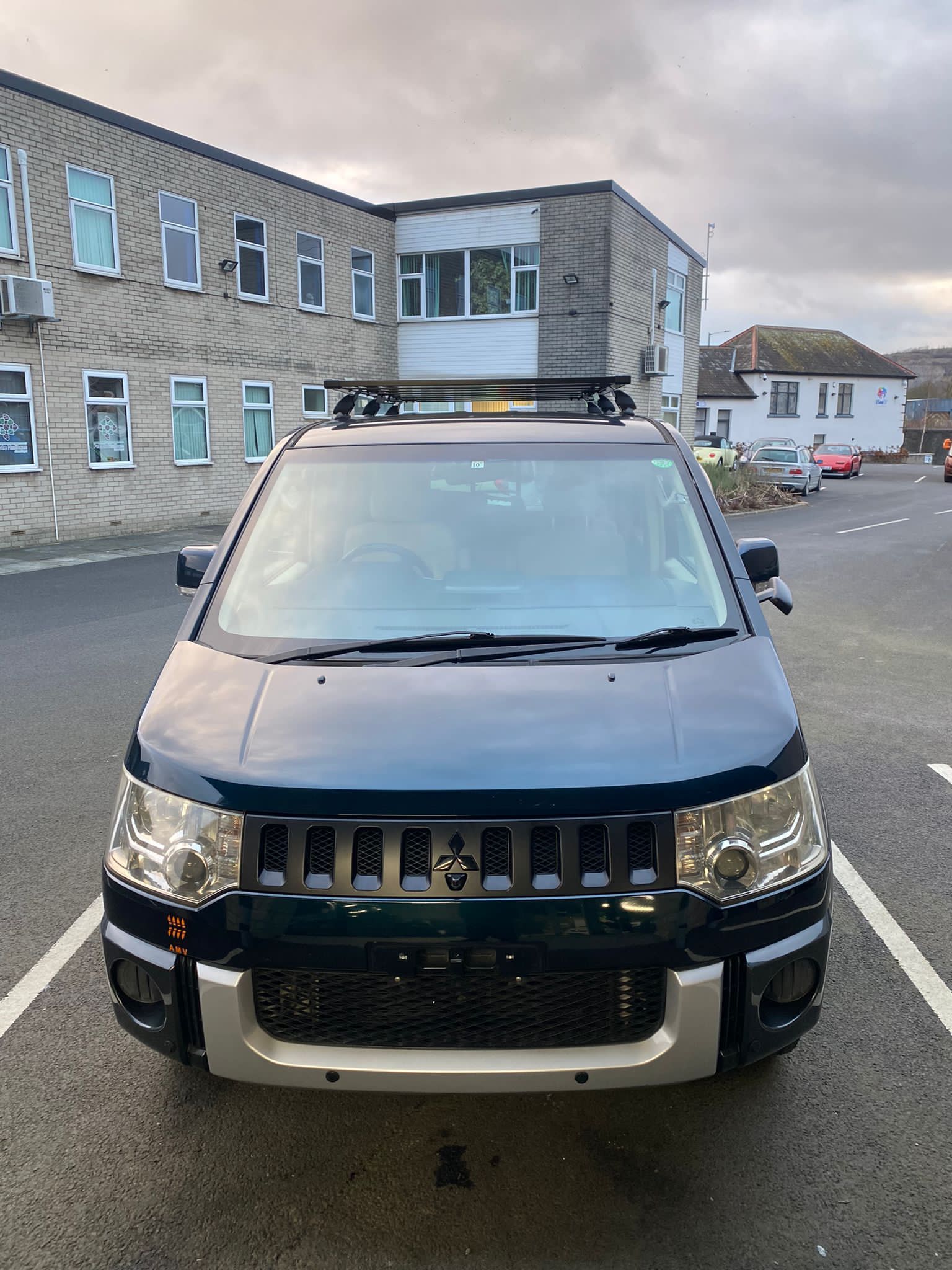

DELICA D5 MODEL

The D5 is our flagship 4WD and indeed the future of our business. It is a uniquely versatile vehicle like it's predecessor the L400, yet offers a modern interior and a timeless design.

Technical Information

Engine Options -

Mitsubishi Delica D:5 — 2.4L Petrol (4B12 MIVEC)

- Engine code: 4B12

- Configuration: Inline 4-cylinder, DOHC 16-valve, MIVEC variable valve timing

- Displacement: 2,359 cc (2.4 L)

- Bore × Stroke: 88.0 mm × 97.0 mm

- Compression ratio: 10.5:1

- Maximum power: 125 kW (170 PS / 168 hp) @ 6,000 rpm

- Maximum torque: 226 Nm @ 4,100 rpm

- Fuel system: Sequential multi-point electronic injection

- Fuel type: Regular unleaded petrol (91 RON)

- Valvetrain drive: Timing chain

- Transmission: INVECS‑III CVT

- Construction: All-aluminium block and head; hydraulic lifters

- Production: 2007–present

- Approx. combined economy: 22–27 mpg (10.5–12 L/100 km)

- Fuel tank: 64 L

Mitsubishi Delica D:5 — 2.2L Turbo Diesel (4N14 DI‑D)

- Engine code: 4N14

- Configuration: Inline 4-cylinder, DOHC 16-valve, turbocharged & intercooled, variable-geometry turbo

- Displacement: 2,267 cc (marketed as 2.3 L)

- Bore × Stroke: 86.0 mm × 97.6 mm

- Compression ratio: 14.4:1 (post‑2018 emissions version)

- Maximum power: 107 kW (145 PS / 143 hp) @ 3,500 rpm

- Maximum torque: 380 Nm @ 2,000 rpm

- Fuel system: Common-rail direct injection

- Fuel type: Diesel

- Emissions systems: DPF, EGR, start‑stop system

- Valvetrain drive: Timing chain

- Transmission: 8-speed automatic with Sport Mode

- Construction: All-aluminium; paired with S‑AWD

- Production: 2011–present

- Approx. combined economy: 35–40 mpg (7–8 L/100 km)

- Fuel tank: 64 L


Dimensions and weight-

Length- 4.73 metres

Width- 1.795 metres

Height- 1.85 metres
